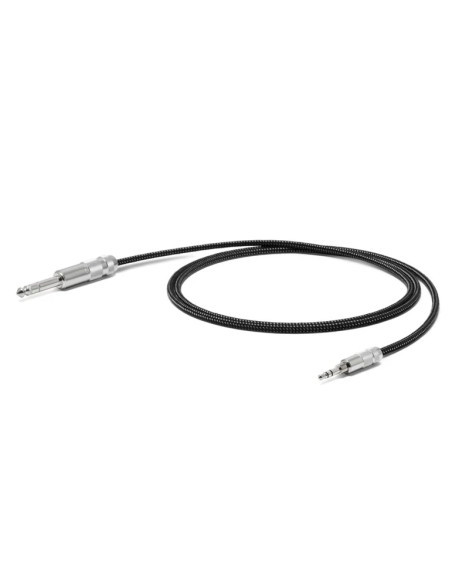

The new Oyaide HPSC Series of headphone cable is the new series to replace the HPC Series. Its key technology is located in the "precision conductor 102 SSC" and "silk". The cable conductor has adopted a "precision conductor 102 SSC" as new materials to replace the PCOCC-A
SPECIFICATIONS
Cable Name: HPSC-22W
Conductor: Precision conductor 102 SSC 7/7 / 0.089 (0.3sq) Insulator / sheath: TPE (olefin-based elastomer) Intervention / cable sheathing: Pure silk filament Shield: 102 SSC horizontal wound shield (58 / 0.089) Outermost layer: Pure silk filament braid Electrical characteristics: Conductor resistance: max 67.9 [Ω / km] . Insulation resistance:. Min 1 [MΩ · km ] Outer diameter: φ4.0mm PLUG DETAILS
