£2,899.00 Pair
We've been blessed with fantastic speakers from the Jade range from Pylon Audio, the bigger brothers in the Jade series give the listener and enthralling experience of real musical bliss. Now it is the turn of the smallest sibling, the cute Jade 10, can it cut the mustard sonically like it's bigger brothers? Of course it can, yet another real treat from the ears, heart and soul, the new Jade 10's from Pylon Audio are here at Eden Audio, order your pair today.
You might also like

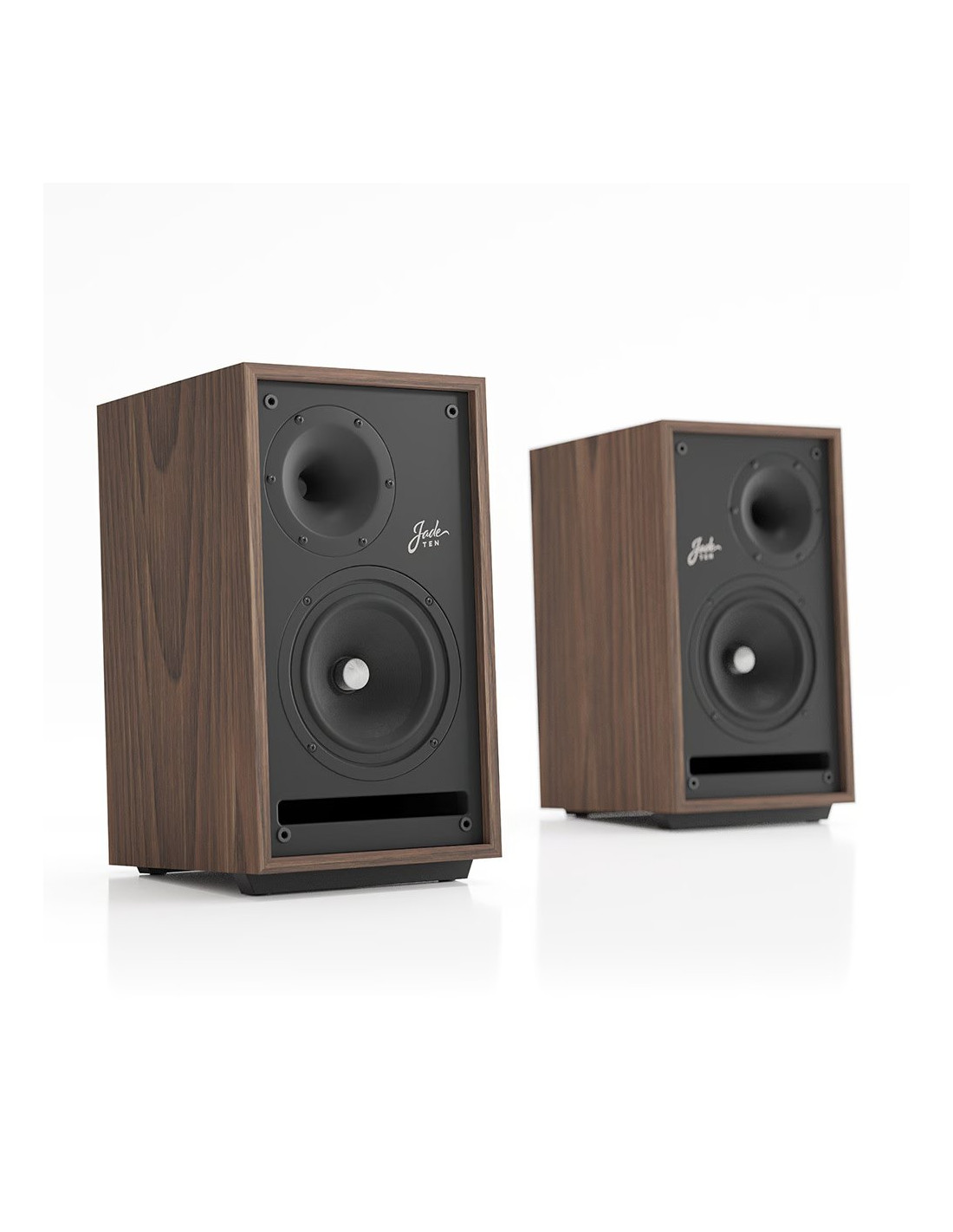

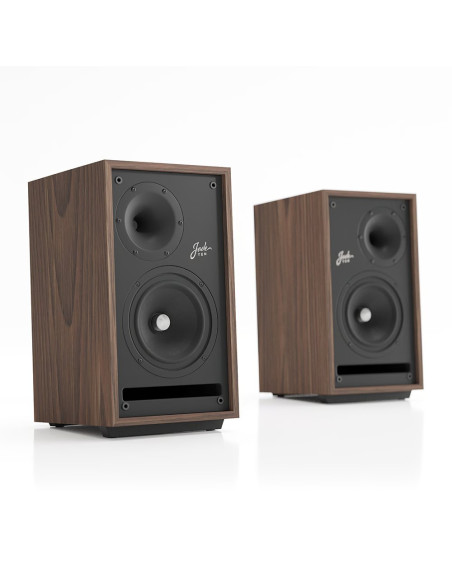

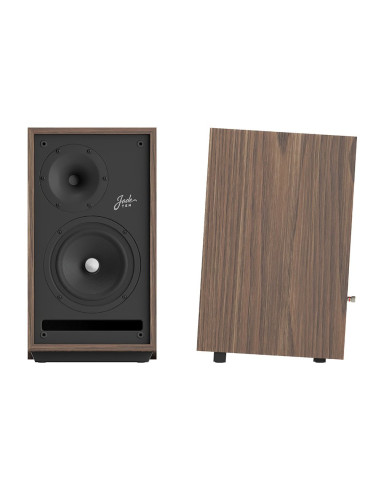

Jade 10 is the smallest loudspeaker in the Jade series – compact, yet full of inner strength. Designed for top-tier sound quality, it features advanced, high-efficiency electro acoustic drivers. The mid woofer delivers fast, colourful bass and a natural, expressive midrange. The tweeter offers crisp, smooth, and non-fatiguing highs. Thanks to its high-sensitivity drivers, the Jade 10 plays with maturity, spaciousness, and a natural sound – even when paired with low-powered tube amplifiers. The internal crossover is carefully tuned and built from linear components and foil capacitors, ensuring seamless driver integration.
Flawless from bottom to top

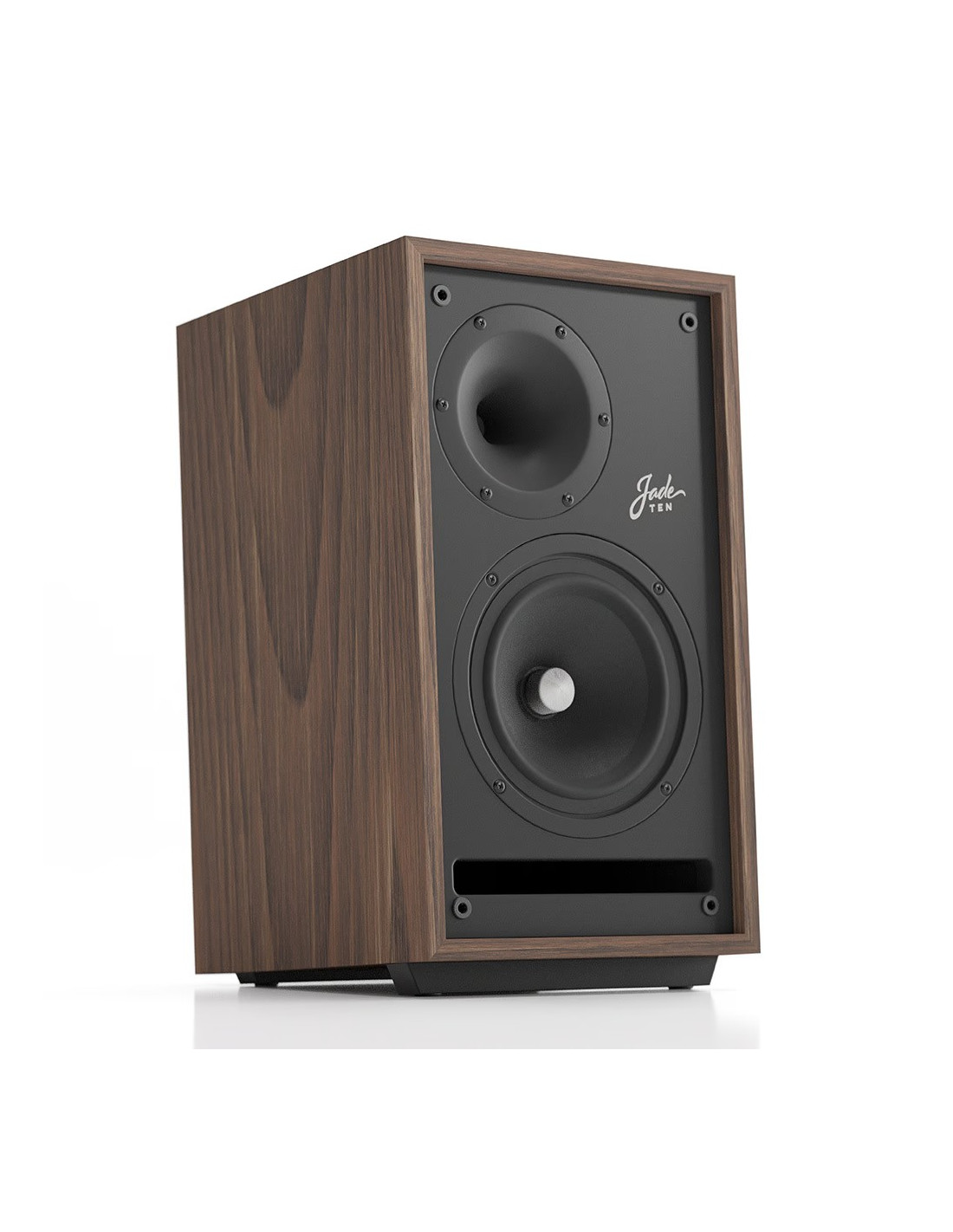

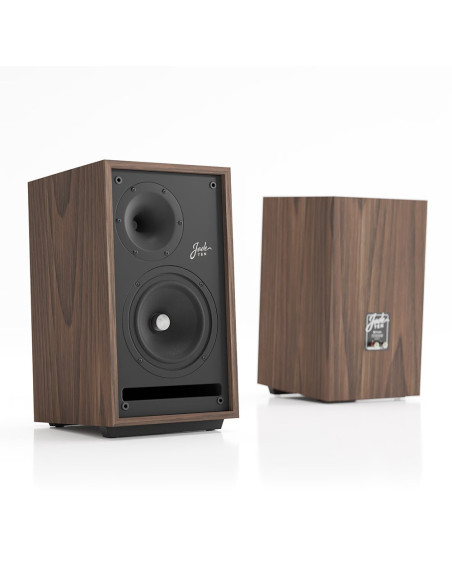

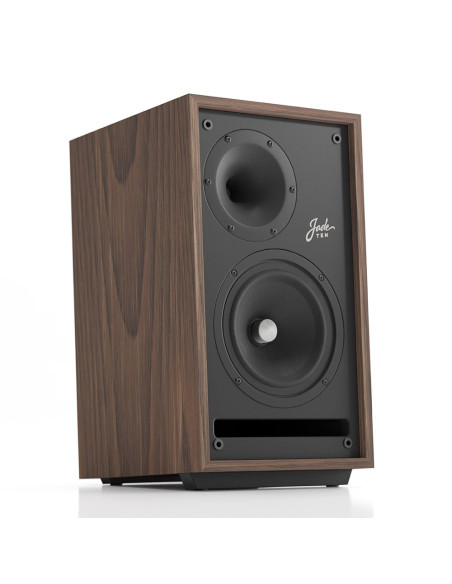

In the lower and midrange frequencies, the Jade 10 uses a mid-woofer equipped with a modified cellulose cone with optimal internal damping, operating in a low-resonance suspension system. It’s supported by a powerful magnetic circuit with advanced field symmetrization and eddy-current-reducing rings, ensuring maximum clarity and precision. The high-frequency range is handled by a professional compression driver, used in larger Jade models. It is paired with a short, custom Tractrix horn, which delivers a detailed yet smooth sound with a widened sweet spot. The tweeter uses a CCAW voice coil, combining lightness and excellent conductivity for accurate, high-resolution reproduction. Dual-sided winding ensures better cooling and lower compression, allowing for higher acoustic output.
Timeless design with exceptional sound

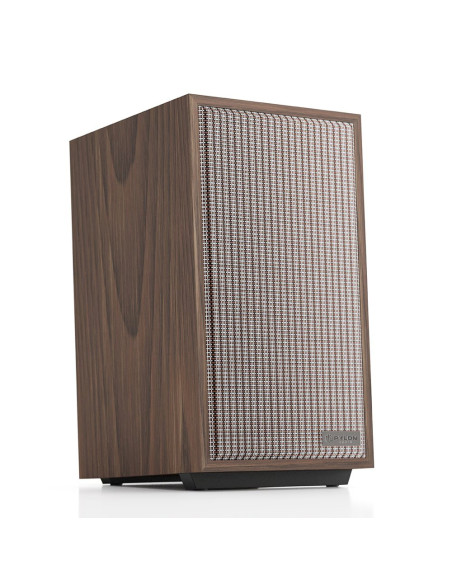

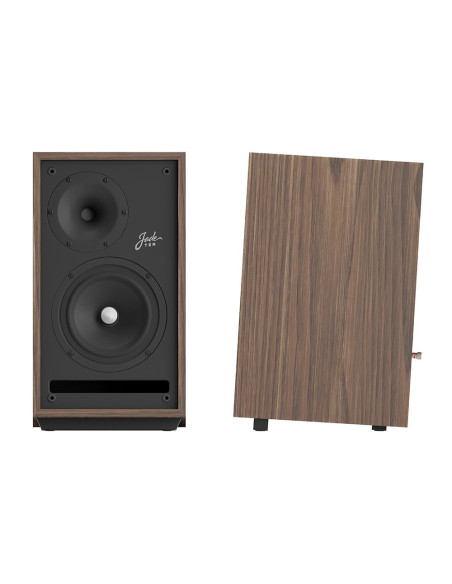

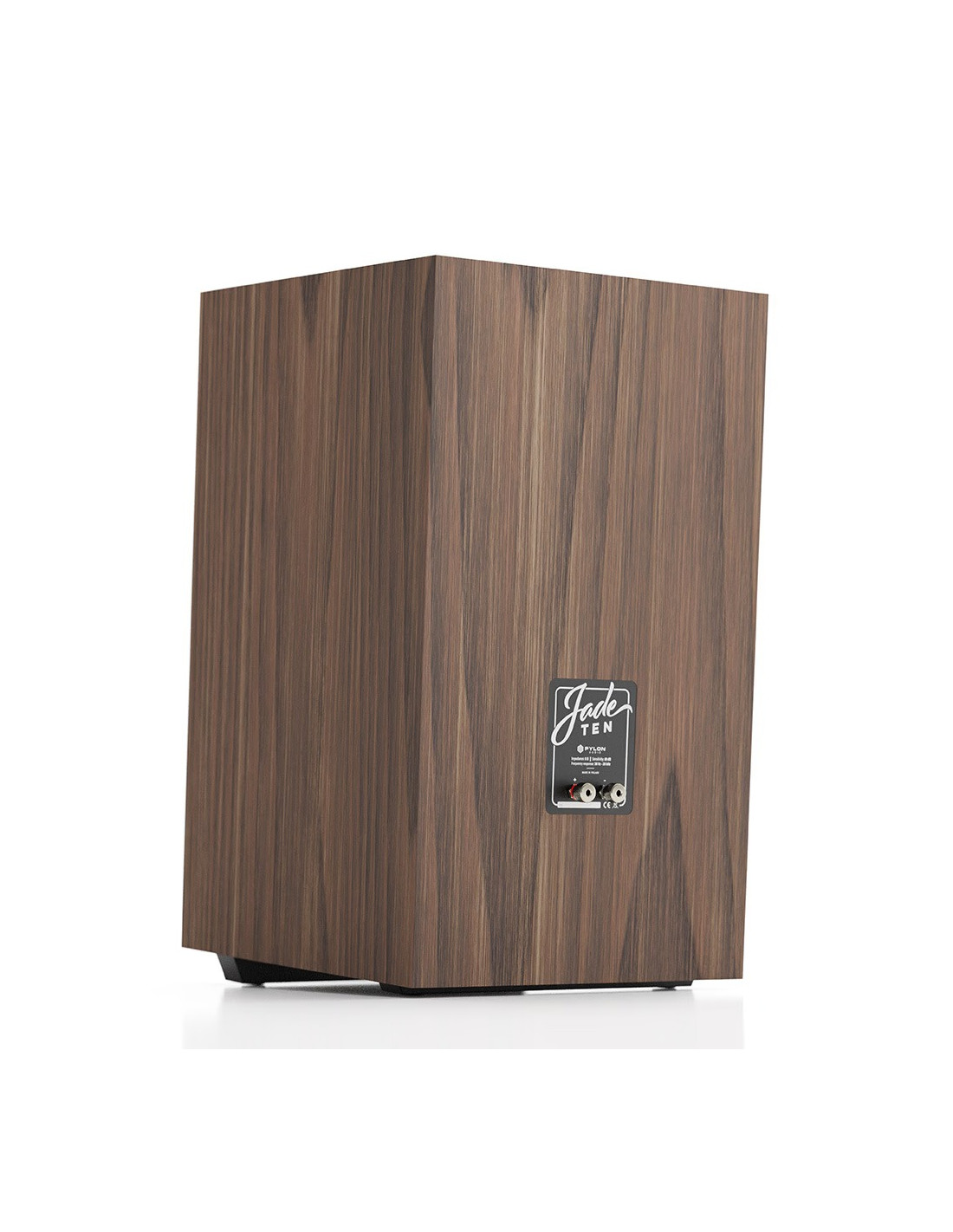

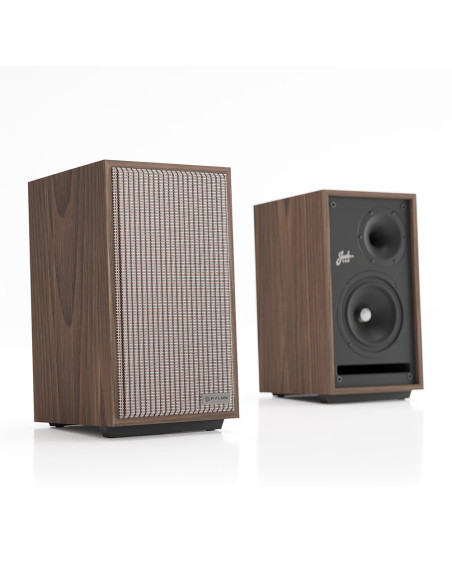

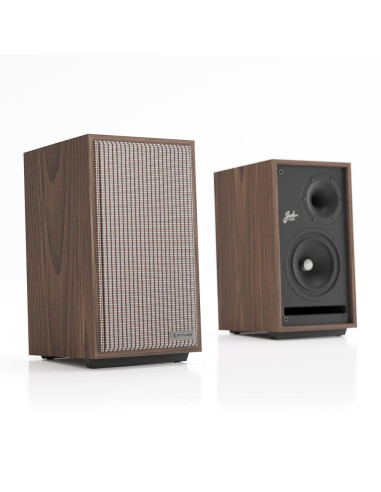

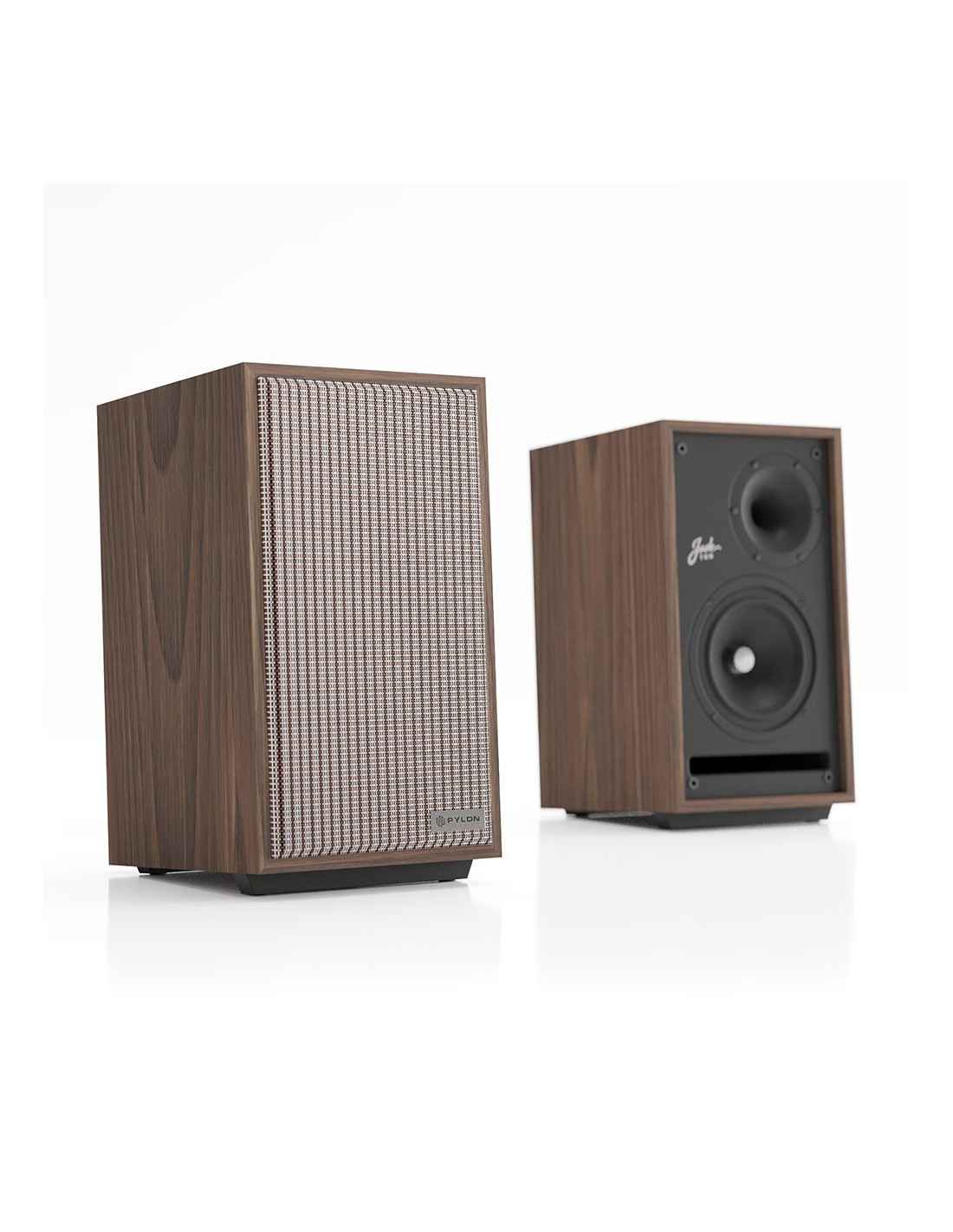

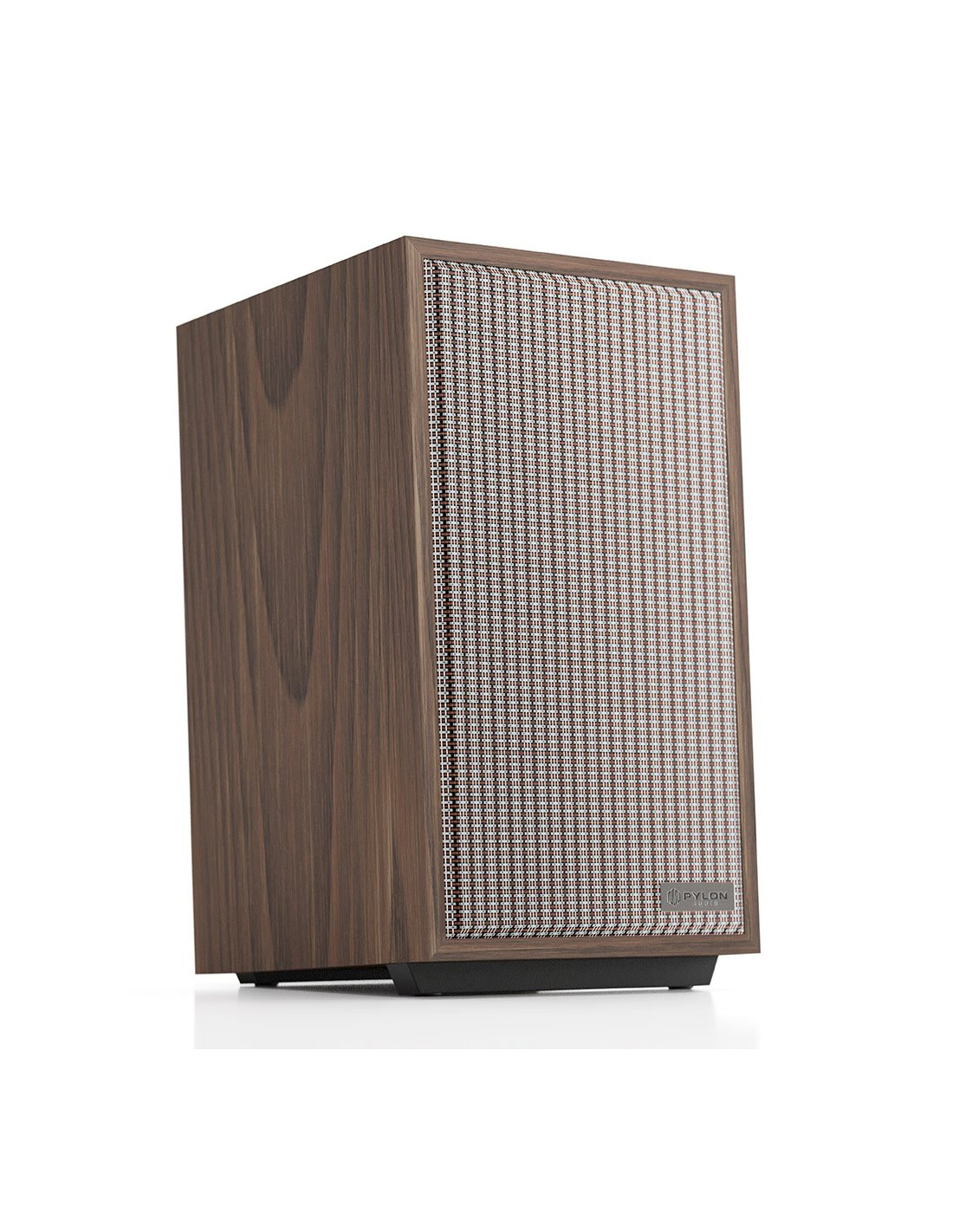

Jade 10’s vintage-inspired look is evident in its proportions, details, and classic grille with pin mounts. The cabinet, made from thick MDF with internal bracing, is stiff and resonance-resistant. Natural sheep wool damping eliminates standing waves and prevents unwanted sounds from escaping through the bass-reflex port. The front-firing bass reflex system, placed near the bottom of the front panel, performs best in near-boundary conditions – whether placed directly on the floor or on the dedicated accessory stand. Combined with its compact dimensions and the option to use an optional stand, Jade 10 is ideal for smaller rooms. The cabinet’s tilt, achieved through specially profiled feet, directs the sound wave toward the listener’s ear level, enabling ideal listening conditions even from low placement.
Impedance 8 Ohm
Frequency response 38 Hz - 20 kHz
Nominal power 100 W
Max power 180 W
Efficiency 88 dB
Speakers
Woofer Pylon Audio PSW 22.8 CS
Tweeter Pylon Audio PST 25PO.8
Dimensions (W/H/D)
300 / 520 / 350 mm
Height with wooden stands and sliders: ca. 550 mm

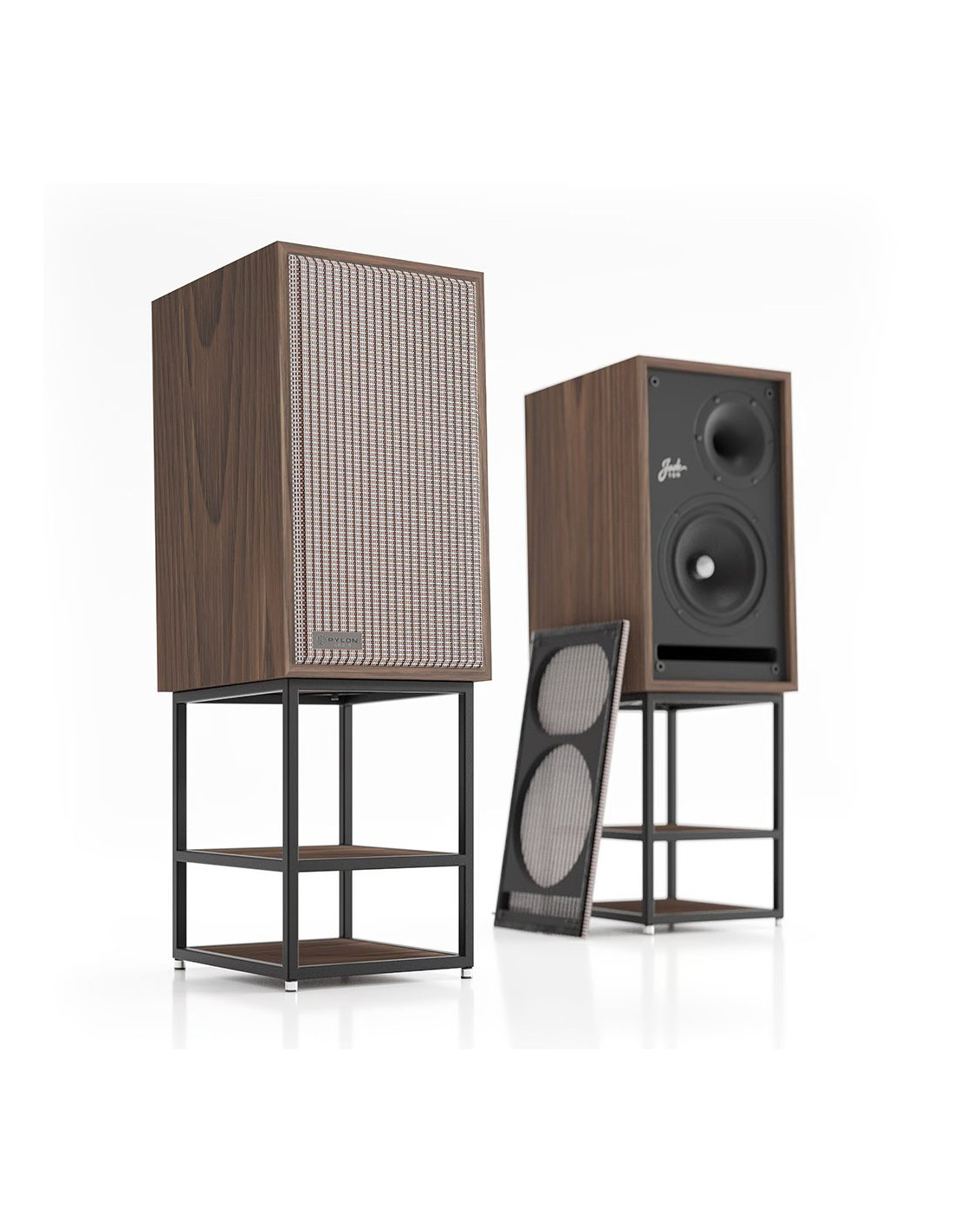

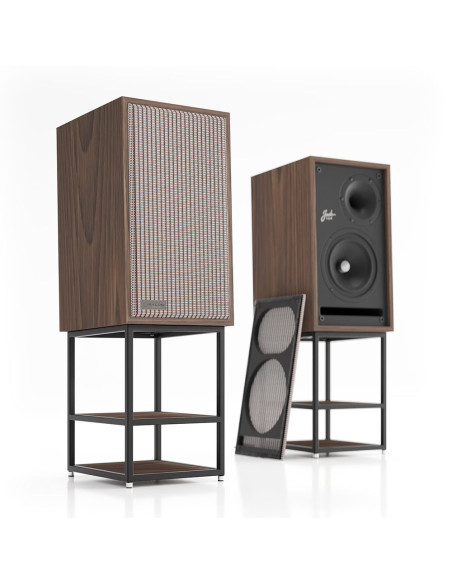

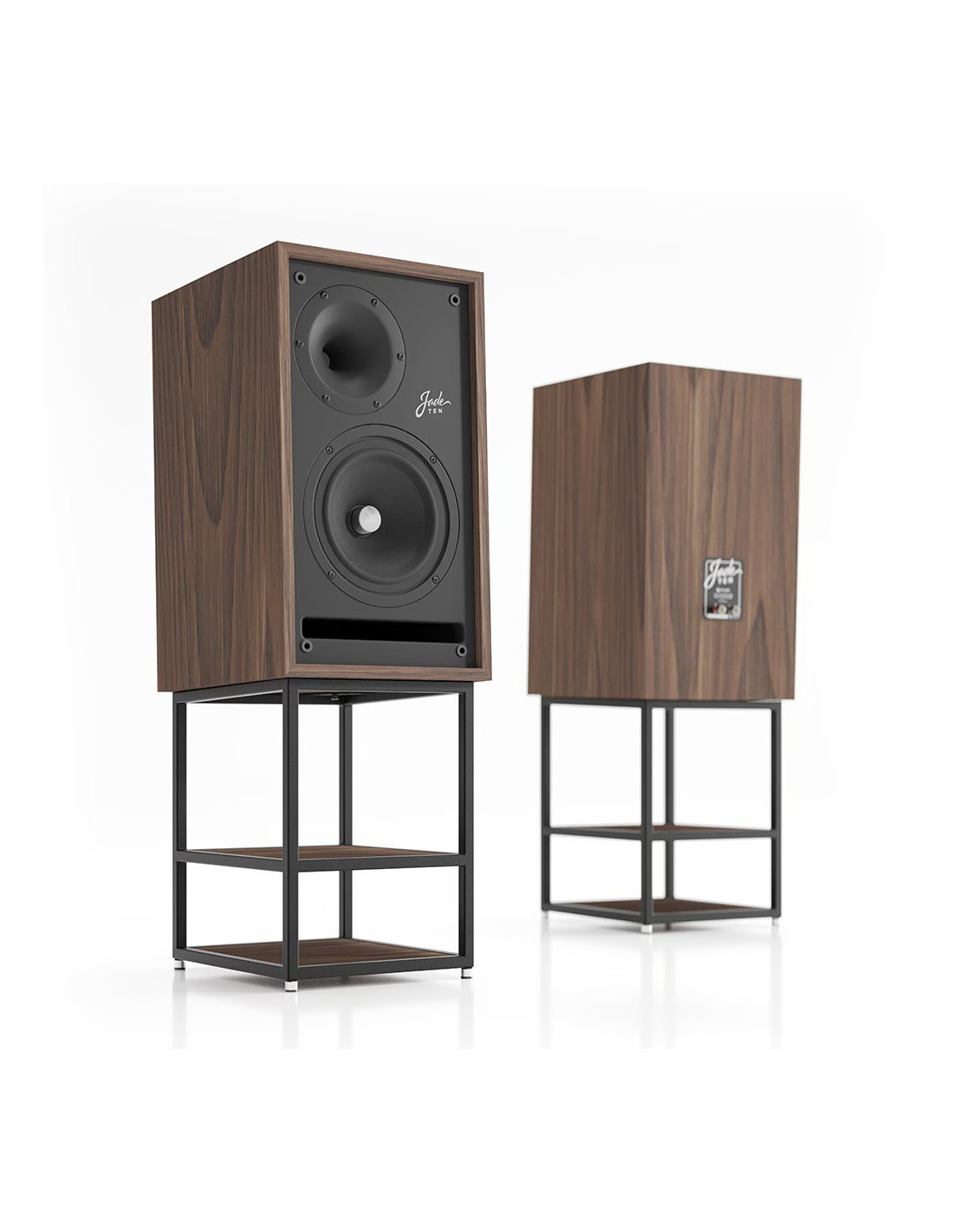

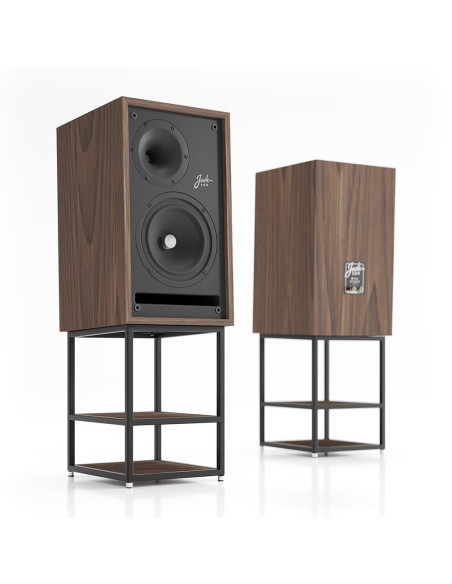

Height on optional stand with screwed-in legs: ca. 895 mm
Weight
20 kg / pc.
Dedicated room size
12 - 32 m²

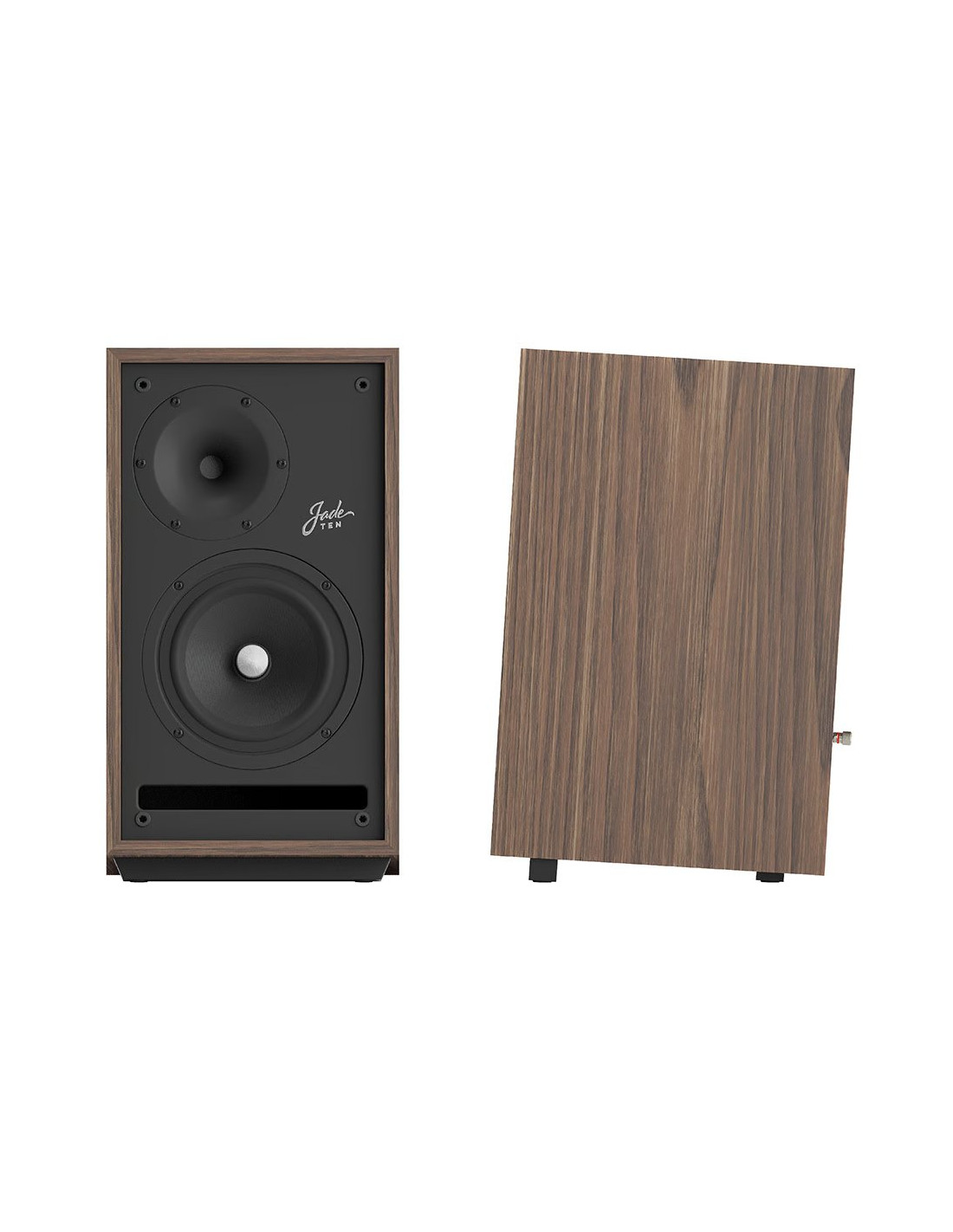

Speaker grill
Included, peg mounts
