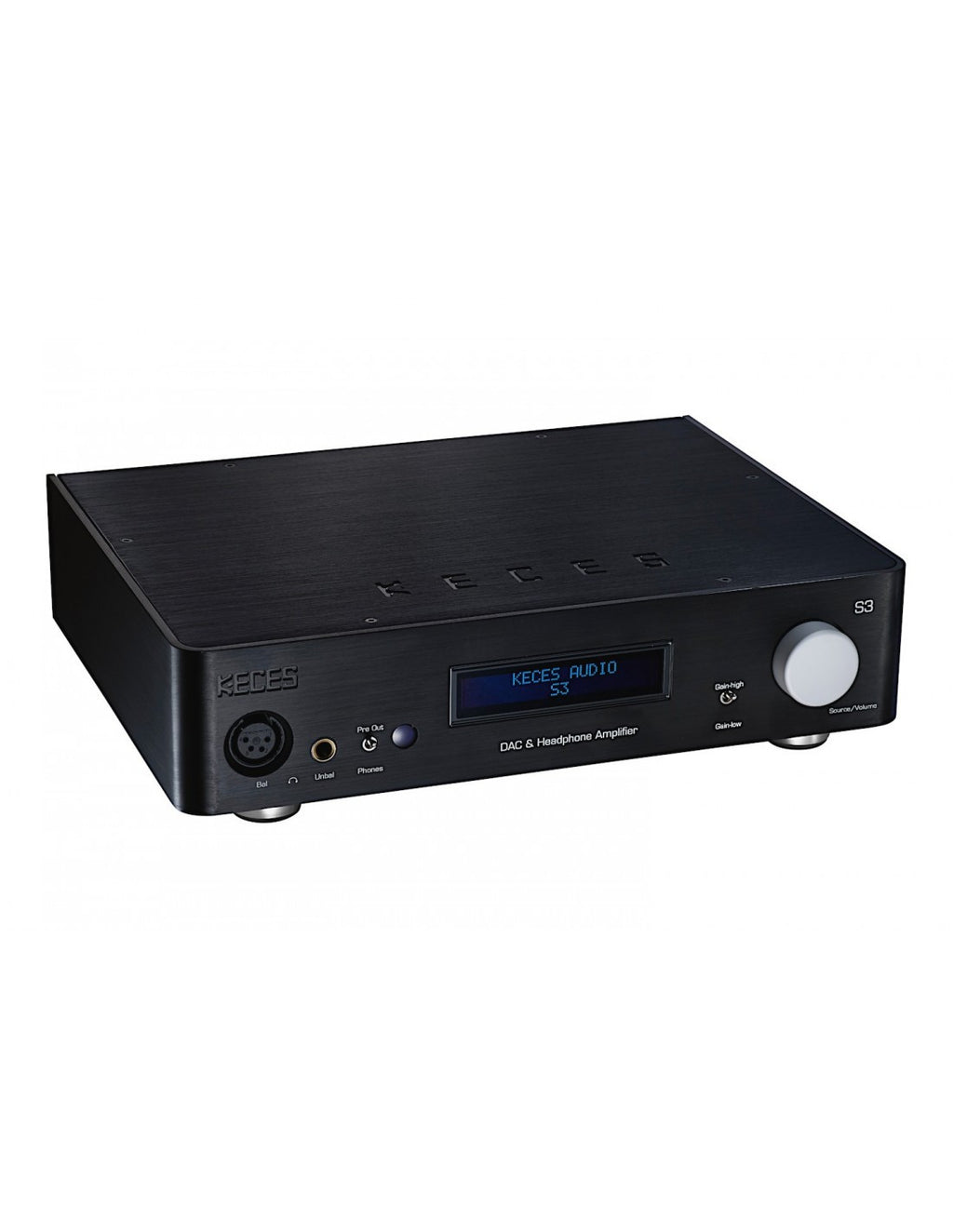

Keces Audio S3

Ex Demo  model, excellent condition

Features

High quality toroidal power transformer

High-performance DAC-ESS ES9026PRO.

USB DAC: PCM 32 Bit/384kHz and DSD DSD64 (DoP)/DSD128 (DoP) DSD64/DSD128/DSD256 (ASIO Native).

COAXIAL/OPTICAL DAC: PCM 24 Bit/192kHz and DSD DSD64 (DoP).

Placed balanced/unbalanced headphone output: max output power 2000mW + 2000mW @ 32ohms.

Placed RCA/XLR input/output interface: could be a Preamplifier.

Volume control system: 128 step attenuator. Accurate control volume to achieve left/right channel balanced.

Isolation circuit: completely separates the grounding of the digital and analogue sections.

Volume/Source/Sampling display using OLED has excellent visibility.

The 4mm thickness of the aluminium chassis to effective to blocks EMI/RFI interference.

The full-metal body realises both vibration control and elegant style in an A4-size body that enables placement on a desktop to be a PC HIFI system or to be a small stereo system.

Digital Input

COAXIAL PCM support up to 16-24Bit/44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz. DSD support up to DSD64 (DoP).

OPTICAL PCM support up to 16-24Bit/44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz. DSD support up to DSD64 (DoP).

USB PCM support up to 16-32Bit/44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz. DSD support up to DSD64 (DoP)/DSD128 (DoP) DSD64/DSD128/DSD256 (ASIO Native).

Analog Input

XLR Input impedance: 47k Ω.

Max input level: 10Vrms.

Input/output gain: 0dB.

RCA Input impedance: 47k Ω.

Max input level: 5Vrms.

Input/output gain: 0dB.

Analog Output

XLR SNR: >-122dB 20Hz-20kHz A-Weighting.

THD+N: <0.0004% at 1kHz A-Weighting.

Frequency response: 20Hz-20kHz (+0dB/-0.09dB).

Channel crosstalk: >-124dB @ 1kHz.

XLR output: 0-4Vrms adjustable @ 0dBFS.

RCA SNR: >-119dB 20Hz-20kHz A-Weighting.

THD+N: <0.0007% at 1kHz A-Weighting.

Frequency response: 20Hz-20kHz (+0dB/-0.03dB).

Channel crosstalk: >-122dB @ kHz.

RCA output: 0-2Vrms adjustable @ 0dBFS.

Headphone Output

XLR_4PIN SNR: >-120db 20Hz-20kHz A-Weighting.

THD+N: <0.00115% at 1kHz A-Weighting @ 300ohms 100mW.

Frequency response: 20Hz-20kHz (+0dB/-0.09dB).

Output impedance: 0.6ohms.

Output power: 2000mW @ 32ohms @ THD+N=0.1%.

1200mW @ 300ohms @ THD+N=0.1%.

650mW @ 600ohms @ THD+N=0.1%.

6.35mm SNR: >-108db 20Hz-20kHz A-Weighting.

THD+N: <0.0015% at 1kHz A-Weighting at 300ohms 100mW.

Frequency response: 20Hz-20kHz (+0dB/-0.09dB).

Output impedance: 0.6ohms.

Output power: 1200mW @ 32ohms @ THD+N=0.1%.

350mW @ 300ohms @ THD+N=0.1%.

175mW @ 600ohms @ THD+N=0.1%.

AC input voltage 110V-120V, 60Hz / 220V-240V, 50Hz (Switchable)

Power consumption 30 Watts

Casing 4mm Aluminum

Dimensions (WxDxH) 300x220x66mm

Weight 4kg
